FOR ELECTRONIC CABINET VENTILLATION AND AIR MOVING SYSTEMS

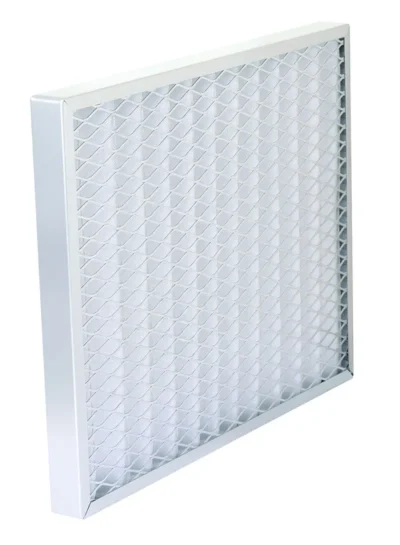

Airsan Type KK filters are washable air filters used for furnace filtration and industrial cabinetry, military-spec computer housings, electrical systems and inverter ventilation. They are used with no adhesives, providing low initial resistance and large dust-holding capacity for greater overall efficiency. Merv Rating range from 3-7.
These filters are designed with polyester media between two pieces of screen cloth, metal frame and expanded metal on both faces for added protection. They are easily interchangeable with any disposable filter, and can be installed and serviced in less time than ordering, receiving, stocking and replacing the old filter.
2” GALVANIZED TYPE AF AIR FILTER
2” GALVANIZED TYPE KK AIR FILTER

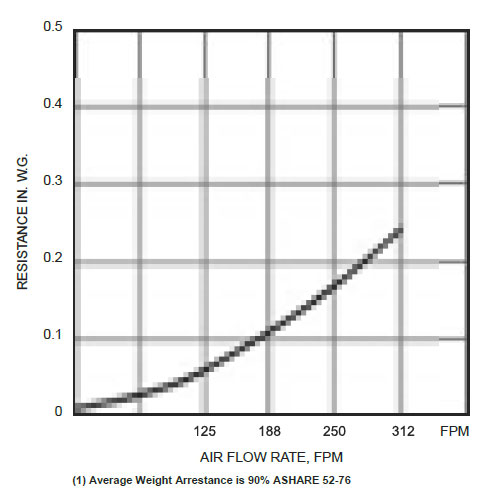

INITIAL RESISTANCE/ PEFORMANCE (1)
MEDIA
2” GALVANIZED TYPE AF AIR FILTER
STOCK NO | CATALOG DESCRIPTION (1) | NOMINAL SIZE (2) | ACTUAL SIZE |
---|---|---|---|
902517 | KKGG1-1224 | 12x24x1 | 11½x23⅜x⅞ |
901037 | KKGG1-1620 | 16x20x1 | 15½x19½x⅞ |
901308 | KKGG1-1625 | 16x25x1 | 15½x24½x⅞ |
901309 | KKGG1-2020 | 20x20x1 | 19½x19½x⅞ |
901310 | KKGG1-2025 | 20x25x1 | 19½x24½x⅞ |
901311 | KKGG1-2424 | 24x24x1 | 23⅜x23⅜x1⅞ |
(1) To order aluminum, use prefix “KKAA”. To order stainless steel, use prefix “KKSS”. To order bronze, use prefix “KKBB”. (2) Use KKGG2-50 and state actual dimension when special sizes are required
2” GALVANIZED TYPE KK AIR FILTER
STOCK NO | CATALOG DESCRIPTION (1) | NOMINAL SIZE (2) | ACTUAL SIZE |
---|---|---|---|
903628 | KKGG2-1224 | 12x24x2 | 11½x23⅜x1⅞ |
901032 | KKGG2-1620 | 16x20x2 | 15½x19½x1⅞ |
901303 | KKGG2-1625 | 16x25x2 | 15½x24½x1⅞ |
901304 | KKGG2-2020 | 20x20x2 | 19½x19½x1⅞ |
901305 | KKGG2-2025 | 20x25x2 | 19½x24½x1⅞ |
901306 | KKGG2-2424 | 24x24x2 | 23⅜x23⅜x1⅞ |
(1) To order aluminum, use prefix “KKAA”. To order stainless steel, use prefix “KKSS”. To order bronze, use prefix “KKBB”. (2) Use KKGG2-50 and state actual dimension when special sizes are required
INITIAL RESISTANCE/ PEFORMANCE (1)
MEDIA
